MOPAR Severe Duty Filter Kit Install

2012 RAM 3500

LEGAL DISCLAIMER: These are pictures of our install of the MOPAR Severe Duty Filtration Kit (SDFK - Part Number 68083853AB). This Kit is for 2004.5 TO 2012 DODGE RAM 2500 and 3500 EQUIPPED WITH 6.7L & 5.9L CUMMINS DIESEL ENGINES. This install is for reference only and comes from the Instruction Sheet K6855569AC provided by MOPAR and Chrysler. Use caution and your own judgement before you cut and modify your own vehicle. We are not responsible for any damages to you or your vehicle or others due to your modifications. WE ASSUME NO LIABILITY FOR YOU, YOUR VEHICLE, OR OTHERS YOU MAY INJURE DUE TO YOUR MODIFICATIONS.

=======================================================

Here are the pictures with the filter assembly installed before the lines are plumbed in, coating removed from the fuel lines before the compression fittings were installed, and with the skid plate put back on. As you can see, the location is fully protected by the skid plate. The electrical harness was installed after these pictures were taken. Fit is perfect, and works exactly as designed.

Filter and Mount Only

Installed Filter and Mount Only (SDFK supplied filter and mount assembly)
Fuel Lines Stripped

Fuel Line Cut and Stripped of Coating
Filter Mounted

Fuel Filter Plumbed In and Mounted
C 130 Connector Location

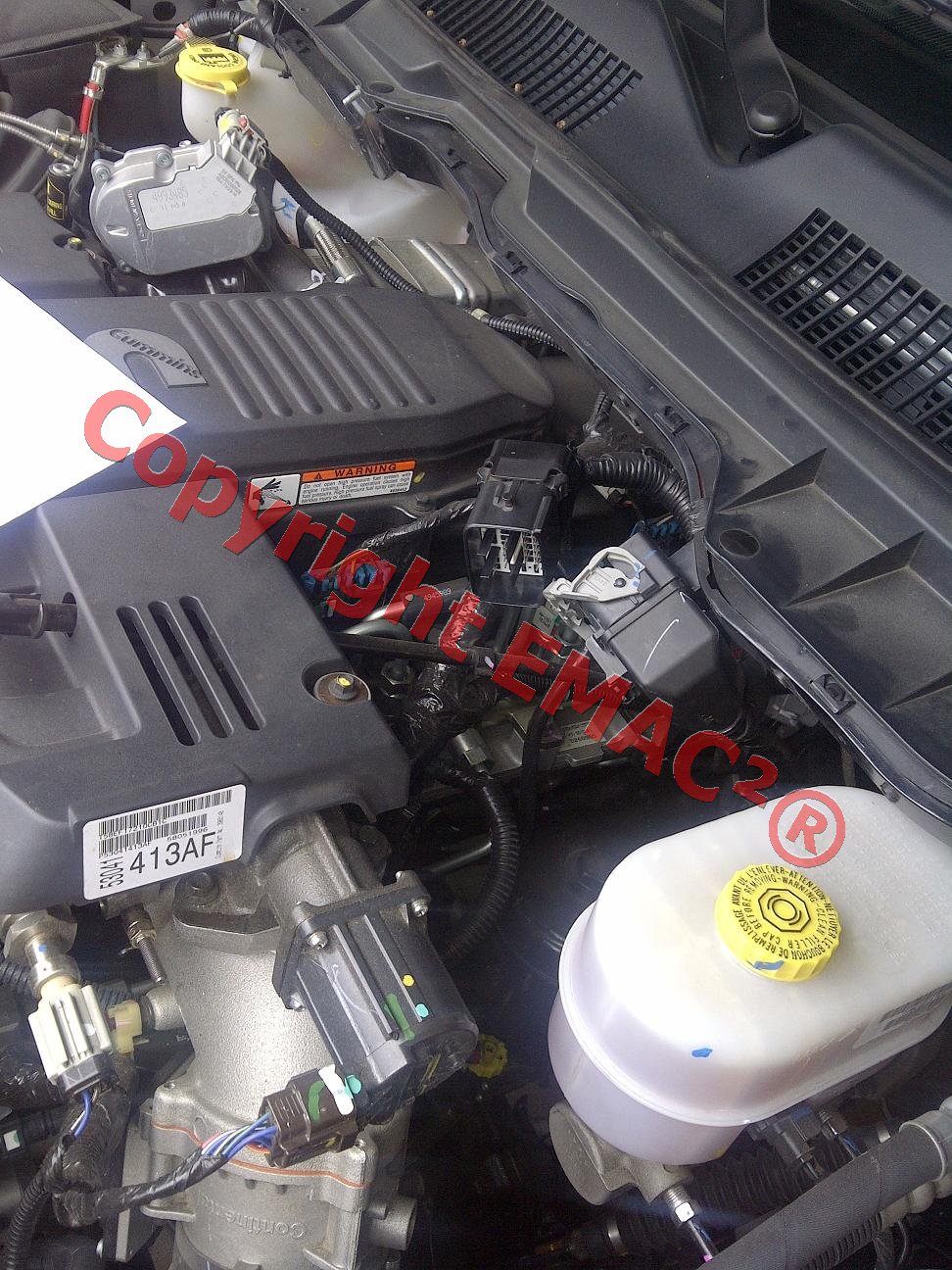

Here's the C 130 Connector Location
C 130 Connector

C 130 Connector Pin-outs
C 130 Connector End Caps Removed

Here's the C 130 Connector with the End Caps Removed
C 130 Connector Pin 4

Here's the C 130 connection on the pin (number 4)
C 130 Connector

Here's the View of the Other side of the C 130 Connector
C 130 Connector

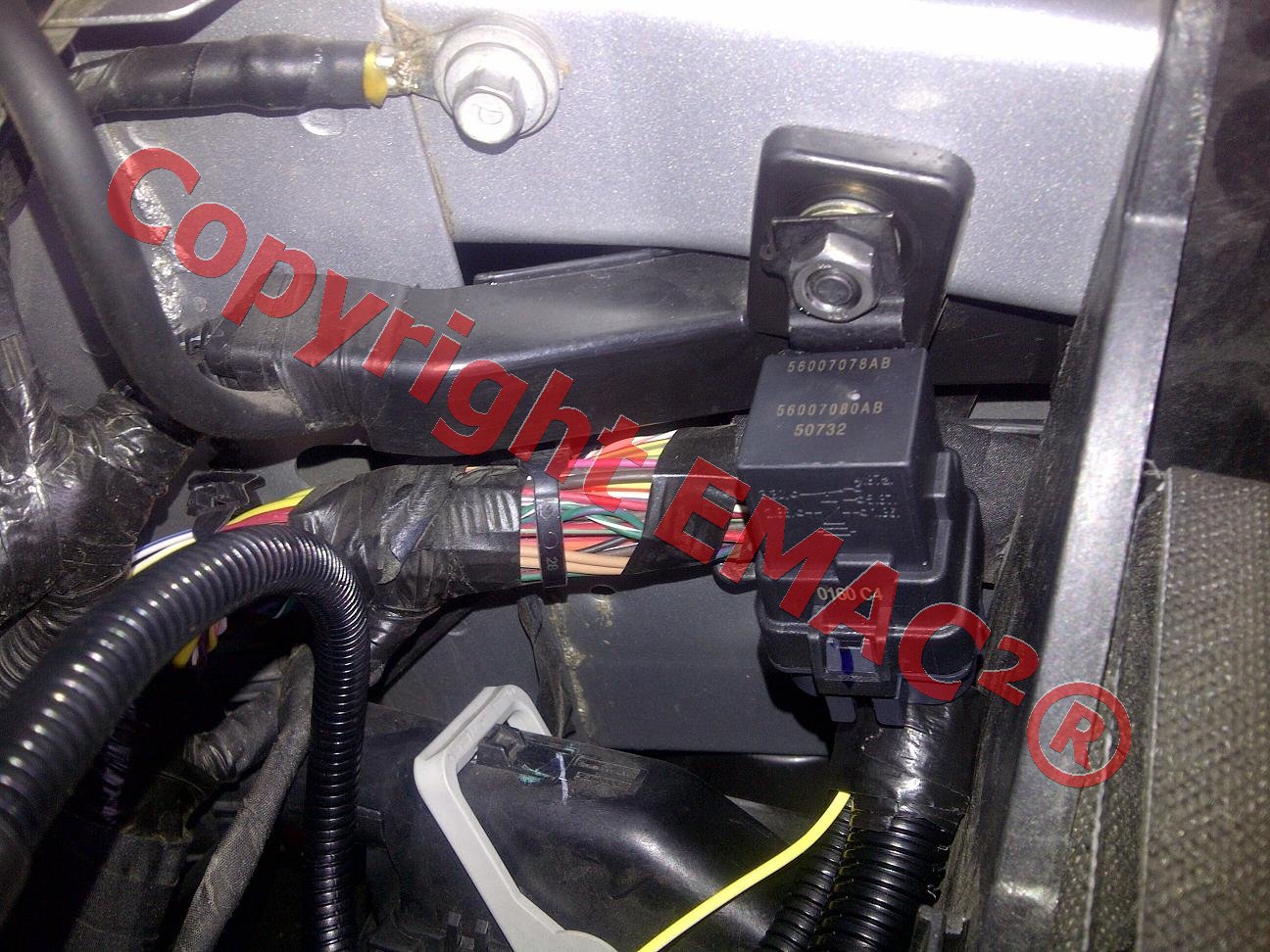

Here's the new relay mounted behind the battery (comes with the SDFK)
Relay Wire to Fuel Relay

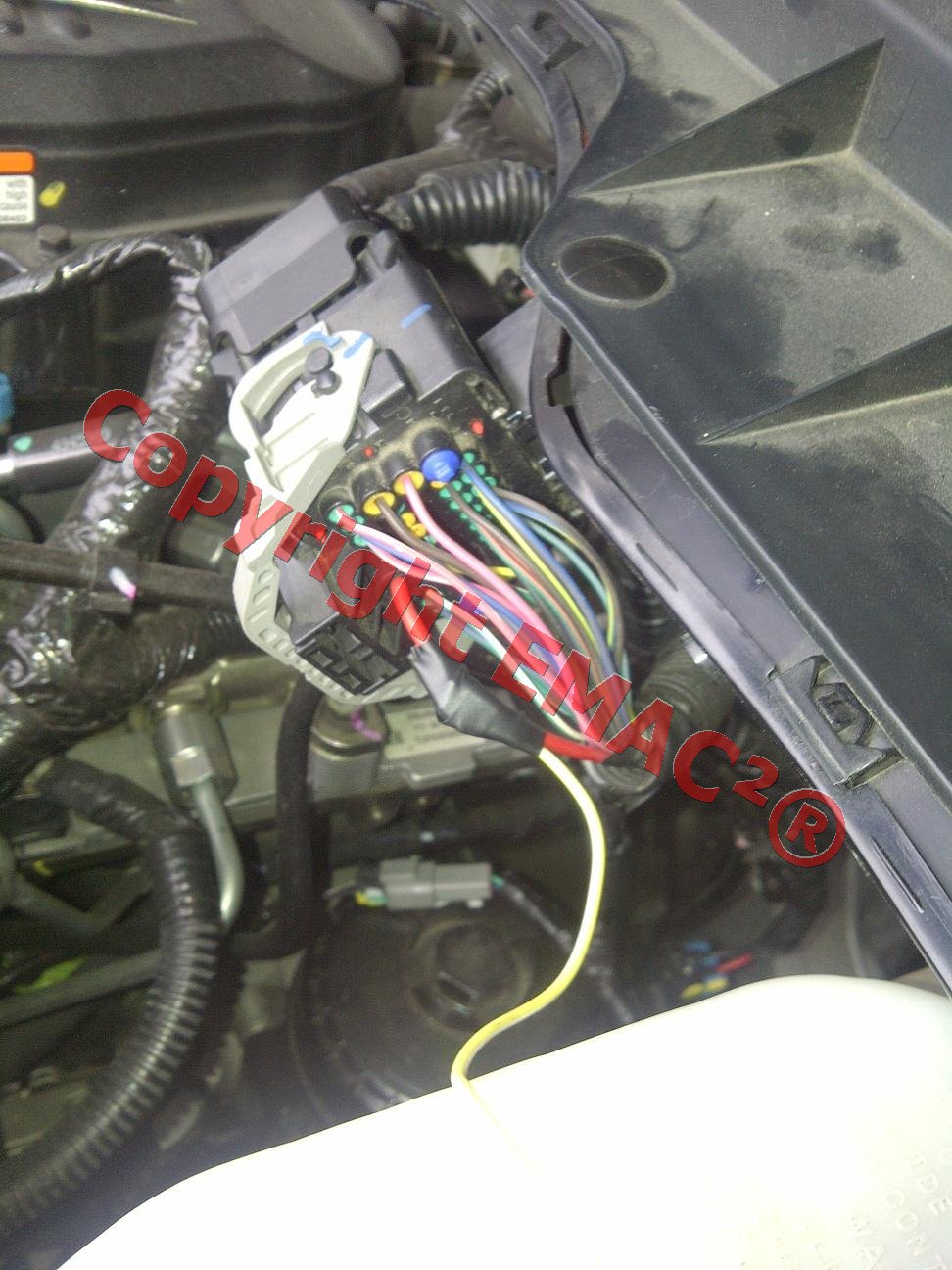

Here's the relay wire to the fuel heater wire
Relay Wire to Fuel Relay

Here's the WIF sensor bypassed on the engine filter and wired into the SDFK Harness
Relay Wire to Fuel Relay

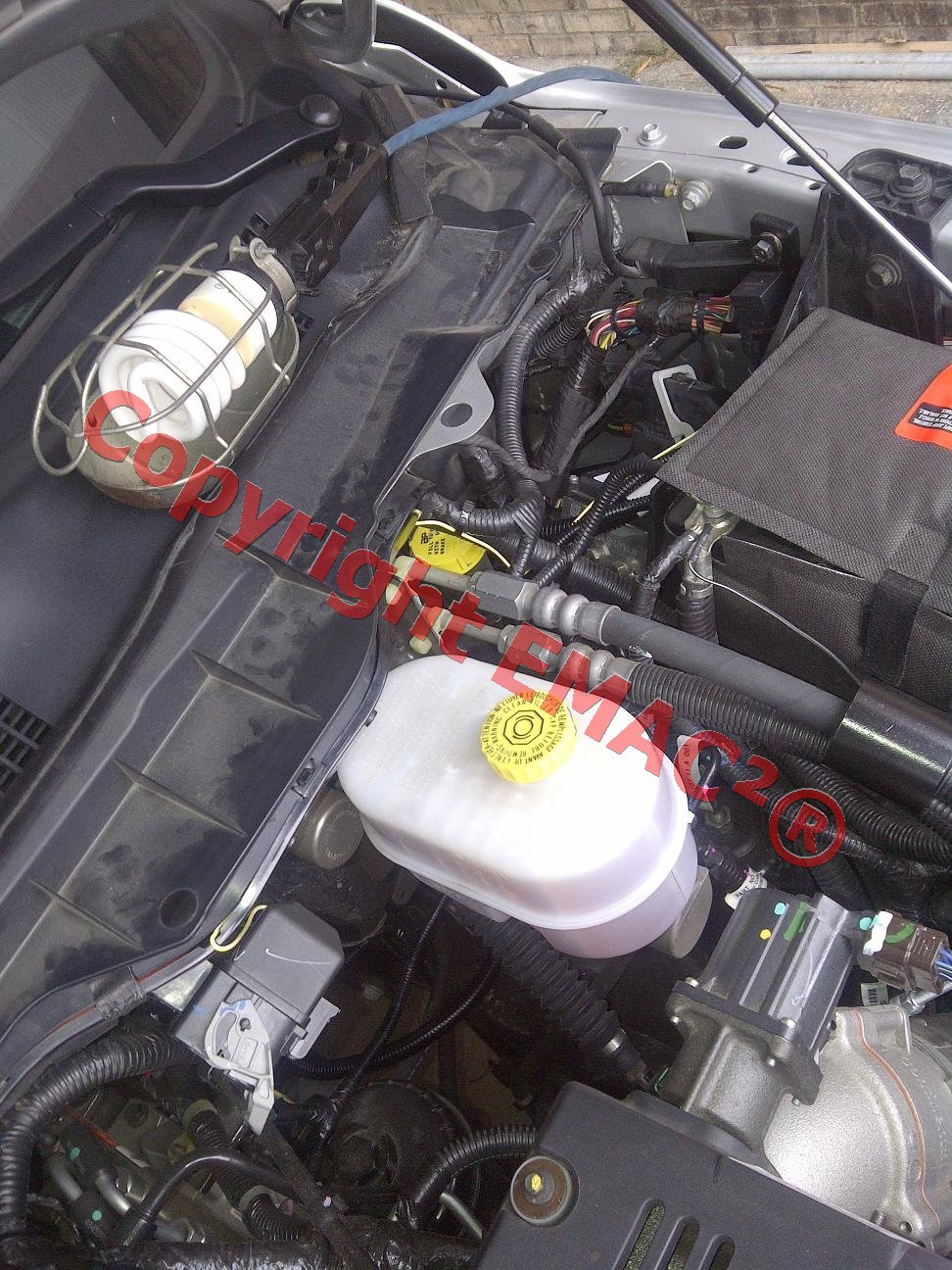

Here's the completed wiring under the hood
